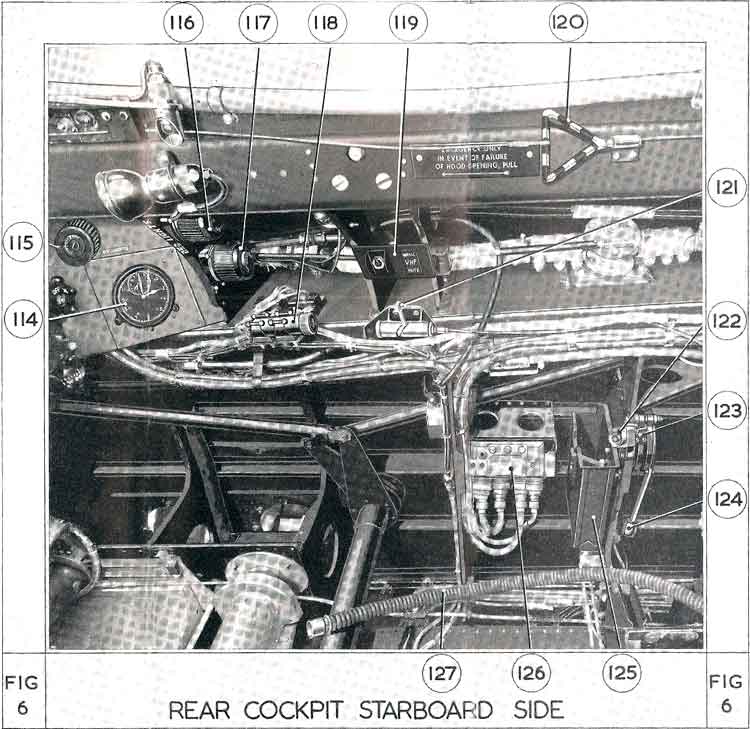

KEY TO Fig. 6
REAR COCKPIT STARBOARD SIDE
114. Clock
115. U/v lamps dimmer switch
116. Red lamps dimmmer switch
117. Emergency lamps dimmer switch
118. Mic/tel socket
119. V.H.F. mute switch
120. Hood rear hooks emergency release
121. Safety harness release
122. Starboard engine relight button
123. Starboard engine H.P. cock lever
124. Starboard engine L.P. cock lever
125. Map case
126. Mk. 4F compass corrector control box
127. Oxygen tube
45
|
