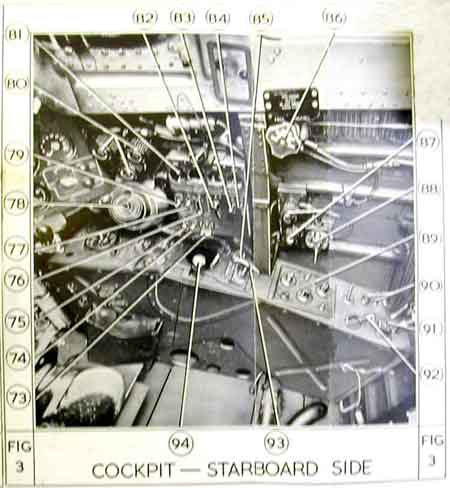

KEY TO FIG. 3 - COCKPIT STARBOARD SIDE

[Click green text to jump to detail in Pilots Notes.]
Click numbers round picture for description of that item in the Notes
(Click green number beside the item to return to this page).

swiftpn-072-Fig-3-swiftpic0.jpg, 24557 bytes
73.F.95 camera window control switch.
74.G.45 camera aperture switch.
75.G.45 camera master switch.
76.Cockpit pressure warning horn override switch.
77.Emergency lamp switch..
78.Cockpit ventilating louvre.
79.navigation light switch.
80.Cockpit lamps switch.
81.F.95 cameras footage indicators.
82.F.95 cameras iris setting control.
83.F.95 cameras heater switch.
84.F.95/G.45 camera selector switch.
85.Hydraulic audio warning test and override switch.
86.Hood motor clutch control.
87.Cockpit lamps switches.
88.Windscreen de-icing control.
89.D.M.E. control panel.
90.Telebriefing light and push switch.
91.Main oxygen/seat supply tube clip.
92.Anti-G control (Test button aft on bulkhead).
93.Rudder bar adjustment control.
94.Emergency oxygen supply manual control.
    NOTE:-The following are not keyed: Relight button, hood
              jettison indicator, G.G.S. master switch.
