PART VII-ILLUSTRATIONS

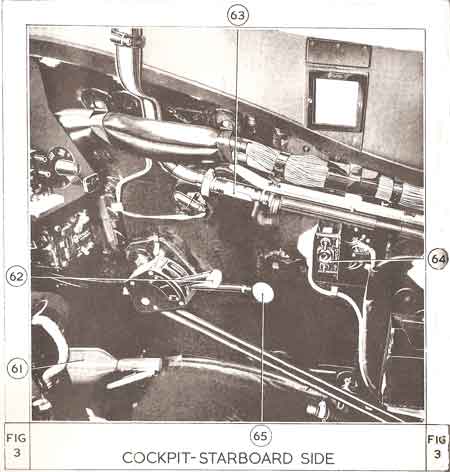

KEY TO FIG. 3
61. Hand fire extinguisher
62. Flaps control (stbd.)
63. Ventilation louvre (stbd.)
64. IFF control switches
65. Undercarriage control (stbd.)
78
|
